Heel~Toe Shifter for the 1800C under $50.00 - VTXOA
 4Likes
Reply

LinkBack Thread Tools
post #1 of 142 (permalink) Old 04-28-2008, 01:18 PM Thread Starter
Senior Member

RoadDawg's Avatar

Join Date: Nov 2003
Location: Third Rock (just to the right of the moon)
Posts: 3,140
Heel~Toe Shifter for the 1800C under $50.00

I wanted it so here is how I got it;

>Buy: one heel/toe shifter for a VTX 1300 Retro and the two rubber pads for the shifter (The linkage connecter comes attached but the pads must be installed... hold them under the hot tap water for a minute and they will be easy to push onto the shifter) (These parts, I bought from HDL.)
Now
>Go to Ace Hardware and buy two #93 "O" rings from the plumbing section and one #8 (metric) stainless washer from the nuts and bolts section.
>Obtain an aluminium drink can (beer,cola etc...).
>You will also need some moly-grease.

The operation:
(A bike jack/lift is needed to gain clearance for this operation)
1) Raise the bike on the lift,
2) Remove the shifter assembly from the bike,
3) Remove the shift pivot bolt from the bracket,
4) Loosen the lock(jam) nut on the shifter linkage, (do not turn it past the point of lose and let the nut stay at that point on the shifter rod, the new shifter will be adjusted to the same point and locked down by tightening that nut).
5) Turn/spin the shifter and remove it from the shifting rod.
6) Clean the grease and remove the seal from the shift pivot bolt.
7) With a pair of tin shears, cut a strip from the aluminium can that is (as in the picture) wide enough to cover the "shoulder" area of the shift pivot bolt.
8 ) Wrap the strip around the pivot bolt to get two full wraps and cut it to that length.
9) Roll the strip and insert it into the new shifter, (see photo).
10) Push the pivot bolt into the shifter and check to ensure that the rolled strip does NOT extent out of the hole on the shifter on either side... if it does, trim the strip so that it only fills the area needed.

The assembly:
1) Install new shifter onto the shift rod and turn it in to the position of the jam nut.
2) Place one #93 "O" ring onto the pivot bolt.
3) Insert the rolled strip (sleeve) into the new shifter.
4) Lube the pivot bolt with moly grease.
5) Insert the pivot bolt into the sleeve being careful to keep the moly grease off of the bolt end (threaded portion).
6) Place the second #93 "O" ring into the seal channel on the opposite side of the shifter.
7) Place the #8 washer onto the threaded portion of the pivot bolt and install this assembly onto the shift/foot bracket. (as you turn the pivot bolt the "O" rings will seat into the seal channels and keep the grease from oozing out. Tighten the pivot bolt.
8 ) Reassemble the foot bracket to the frame, check for proper clearance of the shifter and tighten all bolts. DON"T forget to tighten the jam nut. After checking to make sure all bolts are tight. Get that bike off of the lift and go enjoy your new shifter

The parts you will need

The parts you will need (close up)

The "sleeve" inserted into the shifter

The sleeve and pivot bolt inserted, to show the "fit"

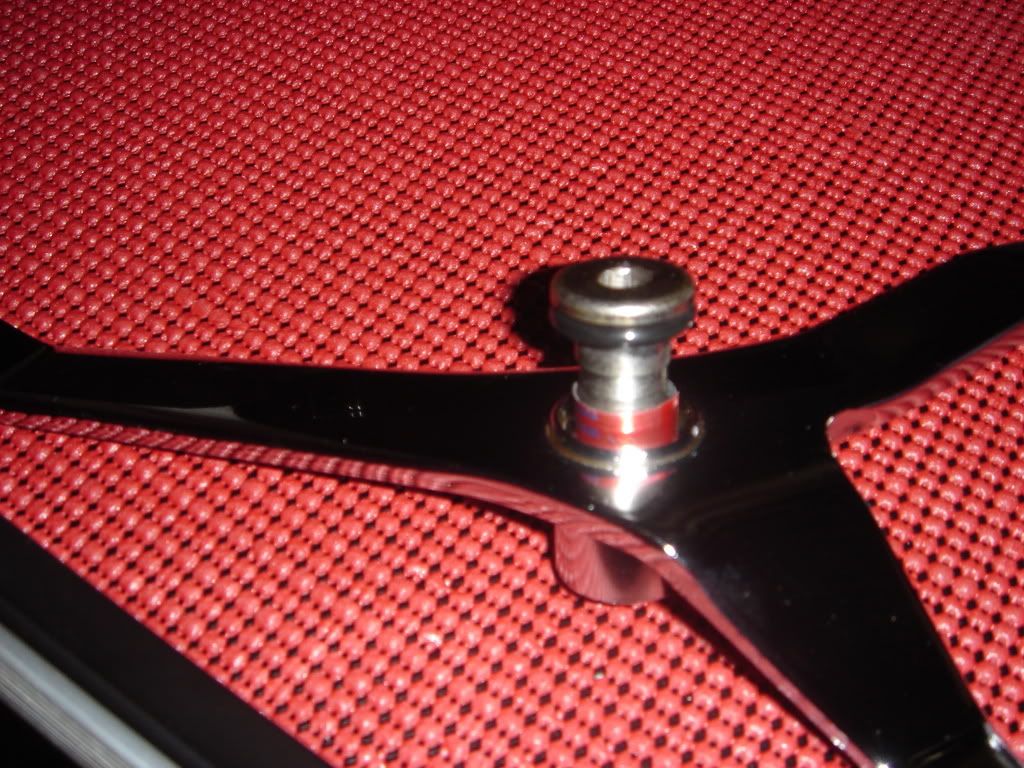

The assembly

The finished product


Edited portion=
You do NOT have to be a master wrench to do this mod... All you need is regular hand tools and basic knowledge.

Here is the info you will need:
From HDL, buy the following;

1 ) 1 OEM Heel-toe shifter for the VTX 1300 Retro.(linkage coupler is installed)
Pt# 24710 - MEA - 740 @ $32.27

2 ) 2 Rubber shift pads for that shifter.
Pt# 24781 - 371 - 000 @ $2.84 ea. ($5.6

Total cost $37.95 (add $5.00 handling if your order is less than $100.00 [$42.95])


Darth [SIGPIC][/SIGPIC] RoadDawg
Charter Member: Liberals Anonymous and, Red light in a Blue State...

Tapatalk ads SUCK... Sent from my smokey fire pit with a wet blanket
RoadDawg is offline
Sponsored Links
Advertisement

post #2 of 142 (permalink) Old 04-29-2008, 12:18 AM
Senior Member

Join Date: Jul 2004
Location: Schenectady NY
Posts: 5,256
Re: Heel~Toe Shifter for the 1800C under $50.00

Road Dawg,

Congratulations.
This post just made it onto my list of the best posts in the forum!

A much requested mod and real good instructions on how to install it!

[SIGPIC][/SIGPIC]2003 VTX1800 C model Retro fenders
Coyote7864 is offline
post #3 of 142 (permalink) Old 04-29-2008, 09:19 AM

Join Date: Mar 2008
Posts: 20
Re: Heel~Toe Shifter for the 1800C under $50.00

FINALLY...I have been told it can be done, and now I can actually spend money on the process because I know it is possible. Did you just buy the heal/toe from the R on here or where did you get that? Thanks for the step by step. Can a guy with little experience do this mod?
bikermiker is offline

post #4 of 142 (permalink) Old 04-29-2008, 01:30 PM Thread Starter
Senior Member

RoadDawg's Avatar

Join Date: Nov 2003
Location: Third Rock (just to the right of the moon)
Posts: 3,140
Re: Heel~Toe Shifter for the 1800C under $50.00

Reference to the "RoadDawg Shifter Mod"

Quote:
Originally Posted by bikermiker
FINALLY...I have been told it can be done, and now I can actually spend money on the process because I know it is possible. Did you just buy the heal/toe from the R on here or where did you get that? Thanks for the step by step. Can a guy with little experience do this mod?
As I indicated in the original post... I bought the all of parts for less than $50.00. I bought the HT shifter (it came with the linkage coupler installed) and the rubber pads from HDL, OEM parts section for about $40.00 (42 and change, if you order less than $100.00 Call them at (88 693-1011 and order by phone). I then spent $0.19 for the washer and $0.69 each for the "O" rings. Include the gas to get it and you have less than $50.00 in total.

You do NOT have to be a master wrench to do this mod... All you need is regular hand tools and basic knowledge.

Here is the info you will need:
From HDL, buy the following;

1 ) 1 OEM Heel-toe shifter for the VTX 1300 Retro.(linkage coupler is installed)
Pt# 24710 - MEA - 740 @ $32.27

2 ) 2 Rubber shift pads for that shifter.
Pt# 24781 - 371 - 000 @ $2.84 ea. ($5.6

Total cost $37.95 (add $5.00 handling if your order is less than $100.00 [$42.95])

All I know is, now I am enjoying my VTX 1800 C more than I was before I did the mod.


Darth [SIGPIC][/SIGPIC] RoadDawg
Charter Member: Liberals Anonymous and, Red light in a Blue State...

Tapatalk ads SUCK... Sent from my smokey fire pit with a wet blanket
RoadDawg is offline
post #5 of 142 (permalink) Old 04-29-2008, 01:42 PM Thread Starter
Senior Member

RoadDawg's Avatar

Join Date: Nov 2003
Location: Third Rock (just to the right of the moon)
Posts: 3,140
Re: Heel~Toe Shifter for the 1800C under $50.00

Quote:
Originally Posted by Jimbo
HDL lists the heel toe shifter (1300 R model) for $71.
HUH?


I said
"Heel~Toe Shifter for the 1800C under $50.00"

Are you a non-believer


Darth [SIGPIC][/SIGPIC] RoadDawg
Charter Member: Liberals Anonymous and, Red light in a Blue State...

Tapatalk ads SUCK... Sent from my smokey fire pit with a wet blanket
RoadDawg is offline
post #6 of 142 (permalink) Old 04-29-2008, 01:46 PM Thread Starter
Senior Member

RoadDawg's Avatar

Join Date: Nov 2003
Location: Third Rock (just to the right of the moon)
Posts: 3,140
Re: Heel~Toe Shifter for the 1800C under $50.00

Quote:
Originally Posted by Coyote7864
Road Dawg,

Congratulations.
This post just made it onto my list of the best posts in the forum!

A much requested mod and real good instructions on how to install it!
Thanks for the kudos and the inclusion in your "Hall of Fame".


Darth [SIGPIC][/SIGPIC] RoadDawg
Charter Member: Liberals Anonymous and, Red light in a Blue State...

Tapatalk ads SUCK... Sent from my smokey fire pit with a wet blanket
RoadDawg is offline
post #7 of 142 (permalink) Old 04-29-2008, 08:46 PM
Guest

Posts: n/a
Re: Heel~Toe Shifter for the 1800C under $50.00

will this work with floorboards? I have Cobra floorboards on my C
post #8 of 142 (permalink) Old 04-29-2008, 09:03 PM
Senior Member

BigDaddyGWhiz's Avatar

Join Date: Nov 2004
Location: Chicago,IL.
Posts: 550
Send a message via AIM to BigDaddyGWhiz Send a message via Yahoo to BigDaddyGWhiz
Re: Heel~Toe Shifter for the 1800C under $50.00

I will be doing this to my 1800C. Thx for the info.

Once a Pimp ,Always a Pimp
All hail Big Daddy
BigDaddyGWhiz is offline
post #9 of 142 (permalink) Old 04-30-2008, 11:47 AM Thread Starter
Senior Member

RoadDawg's Avatar

Join Date: Nov 2003
Location: Third Rock (just to the right of the moon)
Posts: 3,140
Re: Heel~Toe Shifter for the 1800C under $50.00

Quote:
Originally Posted by truckeic
will this work with floorboards? I have Cobra floorboards on my C
I am sorry but I can't answer that except to say if the floorboard uses the stock foot peg mount, then it will mount in the original location as shown, but you need to consider clearance for the inboard back portion of the floor board.


Darth [SIGPIC][/SIGPIC] RoadDawg
Charter Member: Liberals Anonymous and, Red light in a Blue State...

Tapatalk ads SUCK... Sent from my smokey fire pit with a wet blanket
RoadDawg is offline
post #10 of 142 (permalink) Old 04-30-2008, 03:47 PM Thread Starter
Senior Member

RoadDawg's Avatar

Join Date: Nov 2003
Location: Third Rock (just to the right of the moon)
Posts: 3,140
Re: Heel~Toe Shifter for the 1800C under $50.00

Quote:
Originally Posted by Jimbo
In your original post you specificaly said "get a heel toe shifter from a 1300" and I'm telling you if you look at the fiche on HDL it goes for $71. The 1800 heel/toe shifter goes for (approx) $140. And, by the way I think it's a great mod and plan to do it. It just can not be currently done for less than $50. Look at the fiche for yourself.
DAYYUM man... Are you just trying to get me to believe that you can't read or is it possible that you are calling me a LIAR?
READ THE POST ALL INFO IS THERE FOR YOU! Give it up man I just did this mod... You have NOT so who would be better to ask for the prices. Furthermore I called HDL to personally confirm the information BEFORE I posted the prices AND OEM part numbers. (OEM = also available for the stealer prices at your local Honda Dealer)

But here it is for you AGAIN

From HDL, buy the following;

1 ) 1 OEM Heel-toe shifter for the VTX 1300 Retro.(linkage coupler is installed)
Pt# 24710 - MEA - 740 @ $32.27


2 ) 2 Rubber shift pads for that shifter.
Pt# 24781 - 371 - 000 @ $2.84 ea. ($5.6

Total cost $37.95 (add $5.00 handling if your order is less than $100.00 [$42.95])
Call them, FOR YOURSELF, at (88 693-1011 and order by phone

Even after your trip to ACE for the "O" rings and washer for $1.57+tax, You STILL only have at the MOST less than $45.00 in parts. And that is still LESS than $50.00, I know because I checked with a human not just a parts list.


Darth [SIGPIC][/SIGPIC] RoadDawg
Charter Member: Liberals Anonymous and, Red light in a Blue State...

Tapatalk ads SUCK... Sent from my smokey fire pit with a wet blanket
RoadDawg is offline
